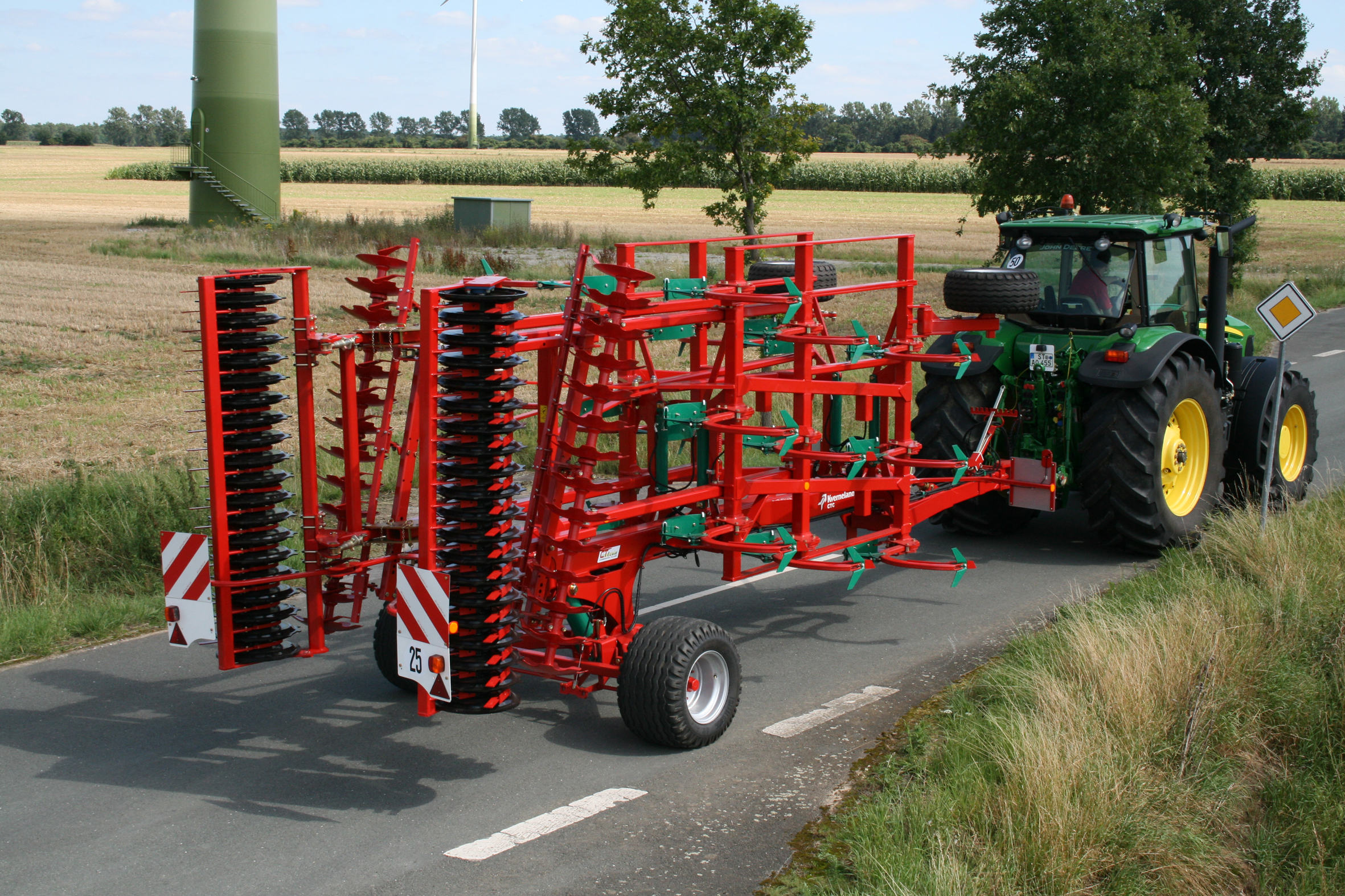

Kverneland CTC Trailed Cultivator

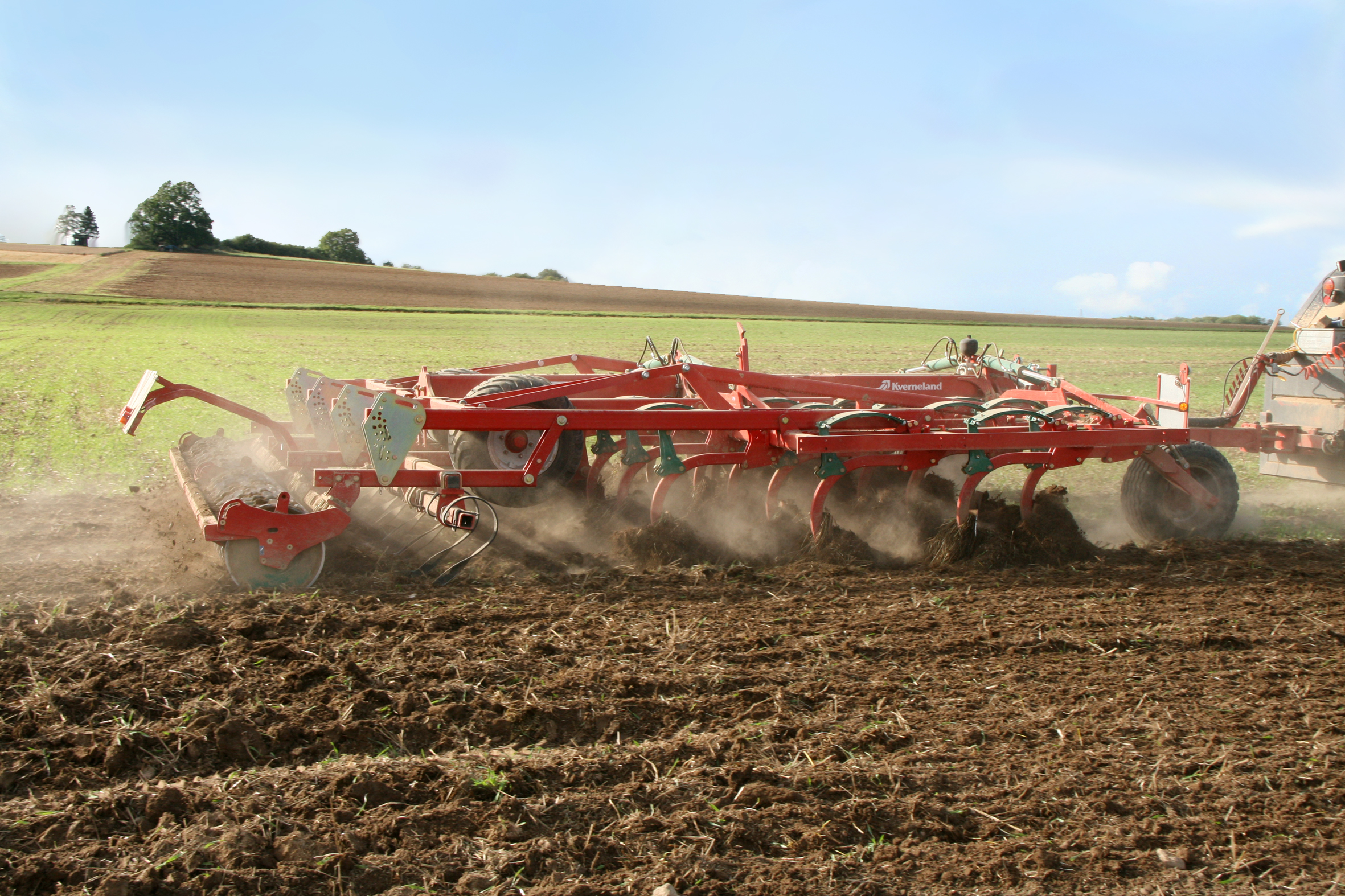

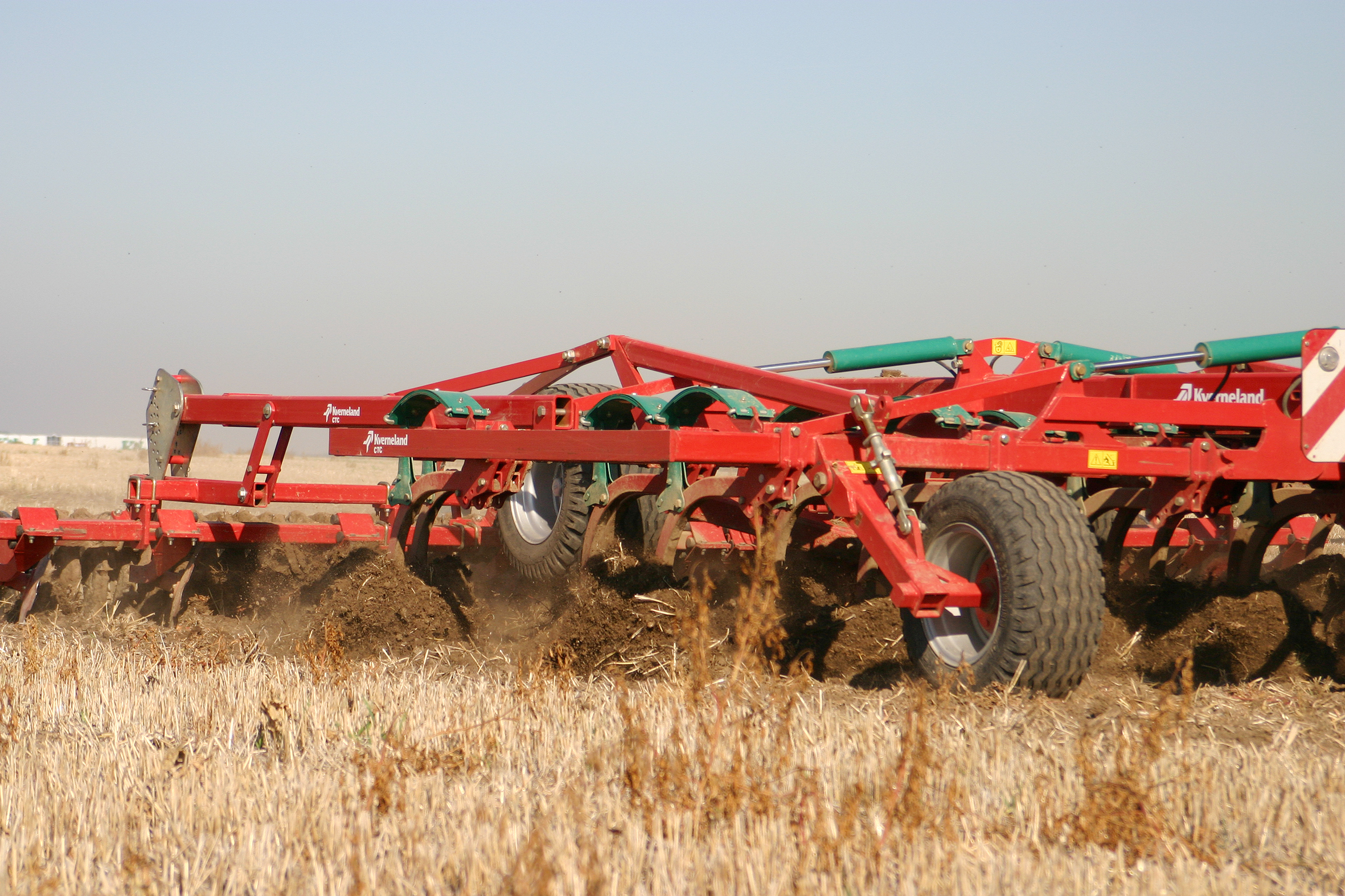

The CTC has a well-organised tine arrangement over 3 or 4 tine rows. The capacity with long residues has really been a focus during the design process ensuring optimum mixing and intensive cultivation. The row distance varies between 270mm and 200mm; the tine position has been optimised to ensure a smooth soil flow across the entire working width but also around the transport wheels.
Description

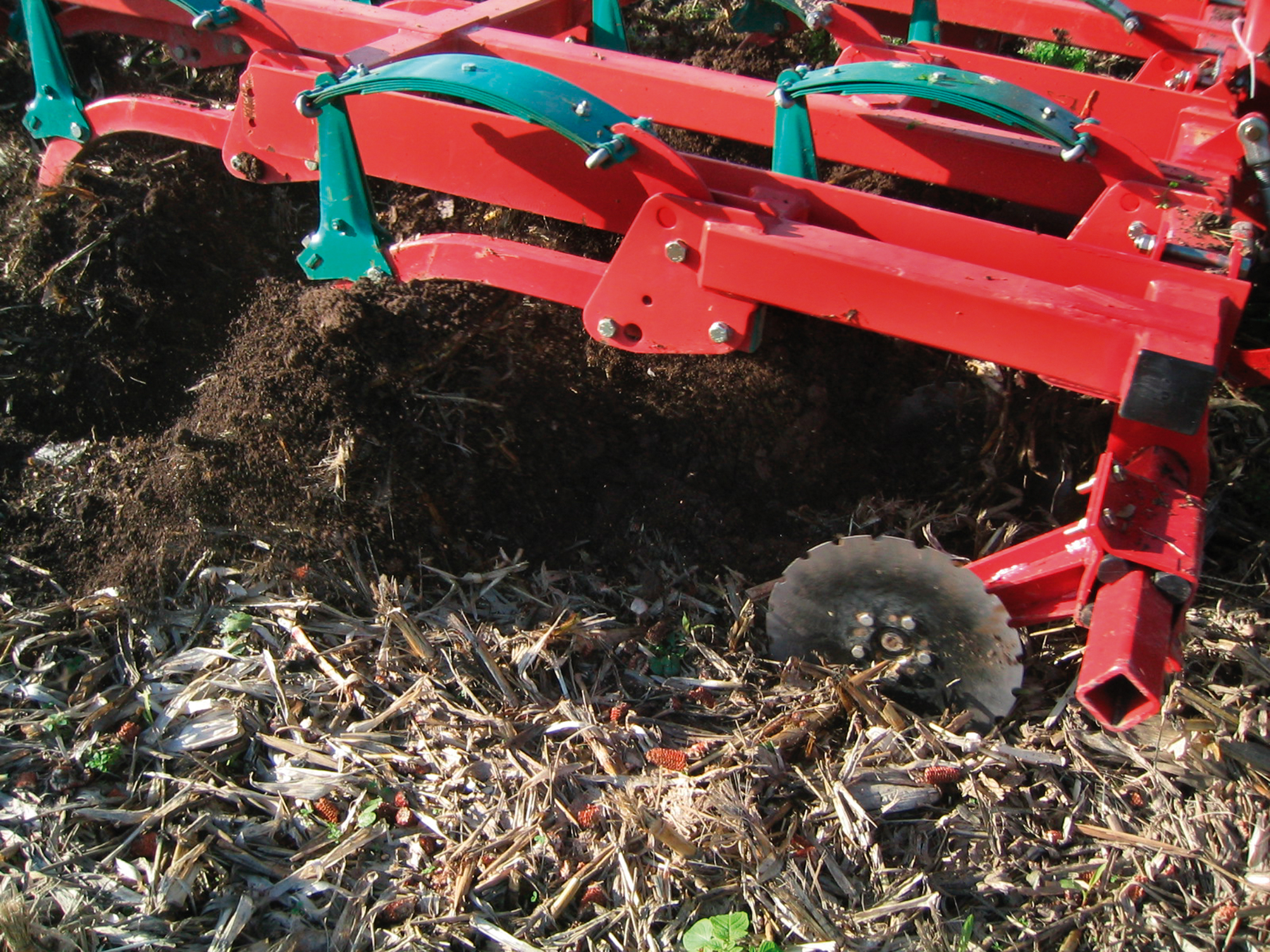

Heat treated frame design with 3 rows of tines. Four working zones: (1) front cutting / mixing disc; (2) ripping; (3) mixing disc / combi disc; (4) roller - levelling seedbed. Auto-reset spring pack with 640kg breakaway. Due to fantastic hollow tine technology the tine can move 200mm each side. Unique tine vibrating for intensive effect in soil low fuel consumption. Highlights:
- Complete cutting, perfect mixing & levelling
- Low pulling force needed
- Reduced maintenance
- Versatile from shallow to medium
- Large performance by high speed
